Khazar Boiler Products

Khazar Boiler Powerhouse Package

A suitable alternative to traditional powerhouses for use in villas and apartments, which simultaneously provide hot water for consumption and hot water for building heating

• Low noise

• The ability to connect to a room thermostat

• Minimum pressure monitoring system of the heating system

• Digital and touch control panel

• Electronic fault notification system

• Equipped with an open combustion chamber with exhaust fan in order to solve many chimney problems in buildings

• Stable and reliable heating

پکیج موتورخانه ای خزر منبع بندر

The Khazar Boiler powerhouse package is an integrated port and includes a boiler, a burner, a circulation pump, copper heating coil, a safty valve, a thermostat, a thermometer and manometer gauge, an airvent valve, a close expansion tank, a pressure relief valve,one way valve, valve on the way back and forth for heating and hot water consumpion, automatic switchboard pane

Khazar Boiler Steam & Hot Water Boiler

The Khazar boiler boilers are designed, calculated and manufactured according to the International Standard (B.S2790) and ISIRI4231 under the supervision of the Iranian General Standards and Industrial Research Bureau and are provided with standard plates.

These boilers capacity is from 100 kg/hr to 20000 kg/hr with working pressure of 10 bar. The shell and furnace of the boilers are of standard DIN17155 (17Nn4) and fire tubes of St35.8). The welding electrodes used are in accordance with 6010,7018A.W.S.E standard and the electrodes are preheated and used prior to welding in special heaters up to 300 °C. Also, the main welds are with automatic welding machine of sub-powder type. Welding of boilers is performed according to PQR and WPS approved by certified welders.

دیگ بخار ایستاده خزر بویلر

The KB-VSB model boilers are designed according to the national standard of Iran No. 4231 as well as the international standard B.S2790. The Khazar Boiler vertical steam boiler is produced at a capacity of 60 to 500 kg / h with a working pressure of 3 to 10 BAR.

دیگ آبگرم خزر بویلر

The Khazar Boiler warm water boilers, with a capacity of 80,000 to 2,500,000 kilocalories per hour, are produced in three models of the wet back, dry back and reversa chamber.

Khazar Boiler Heat Exchanger & Metal Tanks

Domestic Hot Water Tanks , Spiral Domestic Hot Water Tanks , Condensate Tanks , Double Wall Tank and Shell & Tube Heat Exchanger.

New generation of hot water conversion tanks

منبع کویلدار خزر بویلر

he Khazar Boiler Domestic hot water tank with capacity of 200 liters up to 10000 liters are produced in horizontal and vertical models, both in single coil or in two coils.

منبع کویلدار اسپیرال خزرمنبع بندر

The Khazar Boiler spiral domestic hot water tank is a new generation of hot water consumption supplier which are designed and producted in order to increase efficiency of conventional double glazing vessels and copper coil heat exchanger. these heat exchanger with the special coil design are able to increase heat transfer coefficient considerably.

مخزن کندانس خزر بویلر

– Reducing the cost of water and fuel consumption

– Increasing steam production from the boiler

– Reduction of boiler failure

Reducing boiler energy loss

– Removal of the resin hardening device from the powerhouse circuit due to the descaling operation by the condensate tank

منبع دو جداره خزربویلر

Double wall tanks are used to provide domestic water use in apartments and factories, hospitals, hotels, and more. The heating system of these resources is provided by the hot water that flows in the outer wall and transfers the heat to the inner wall. The sheet used in the manufacture of carbon steel tank is hot galvanized on them.

منبع دو جداره خزربویلر

The most common and most used type of heat exchangers used in the industry are shell & tube heat exchanger. The heat exchangers consists of a number of tubes placed inside a cylinder and two of the desired ones, one cold and one hot. Without interacting directly, they exchange heat between the metal walls and the pipes. T

Khazar Boiler Filters & Water Softener

Automatic and Semi Automatic Water Softener & Sand Filters

Equipment required for water purification

فیلترشنی خزربویلر

The sand filter is a device that, by filtration of the water, removes the suspended particles up to a size of four microns, such as mud, colors, organic matter, bacteria and corrosive particles.

سختی گیر تمام اتوماتیک خزر بویلر

In the process of hardening to remove calcium and magnesium, hard water passes through the ion exchange resins that are inside the tank of the device.

Khazar Boiler Seperators

Hydrocyclone, air separator, deaerator

Air Separator of khazar boiler is a device for separating air dissolved in water for heatin g powerhouse with hot water boiler. Separating air from water will reduce the corrosion rate and reduce engine room equipment failure. This device with a simple structure has a function similar to a deaerator

هیدروسیکلون خزر بویلر

Hydroclock application:

– Removing sand particles from well water and river

– Solid particles separation from factory return water flow

– Isolation of suspended solids in liquid for the production line of industrial units

دی اریتور خزر بویلر

Deaerator is used to preheat the intake water of the boiler and to remove the insoluble gases of oxygen and carbon dioxide.

KhazarBoiler All Products

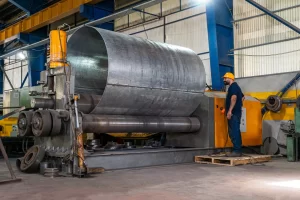

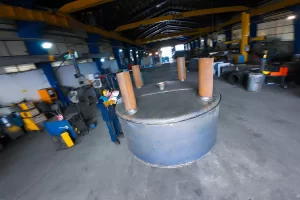

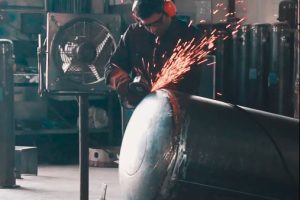

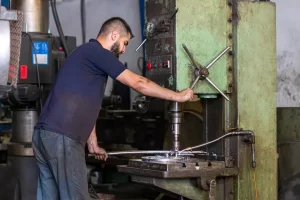

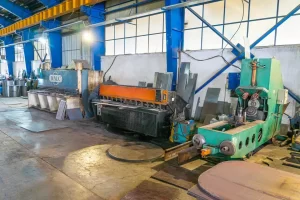

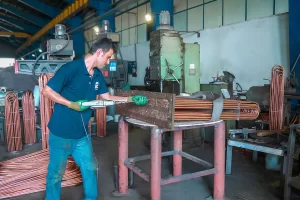

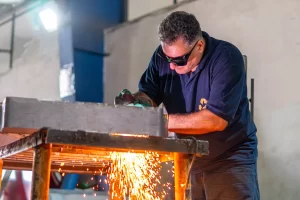

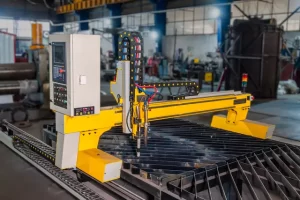

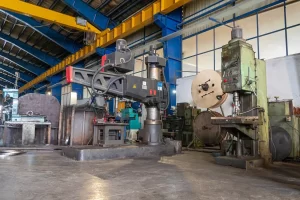

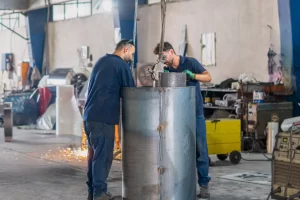

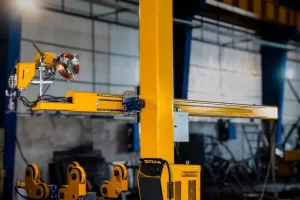

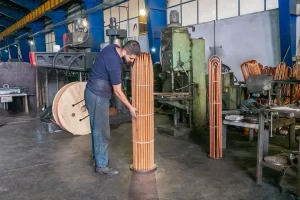

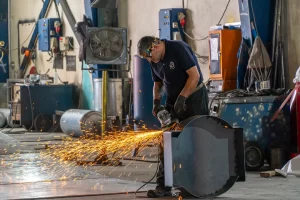

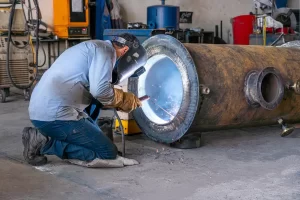

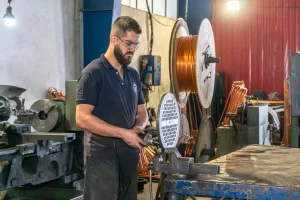

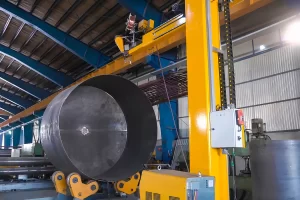

Stages of production of metal products
